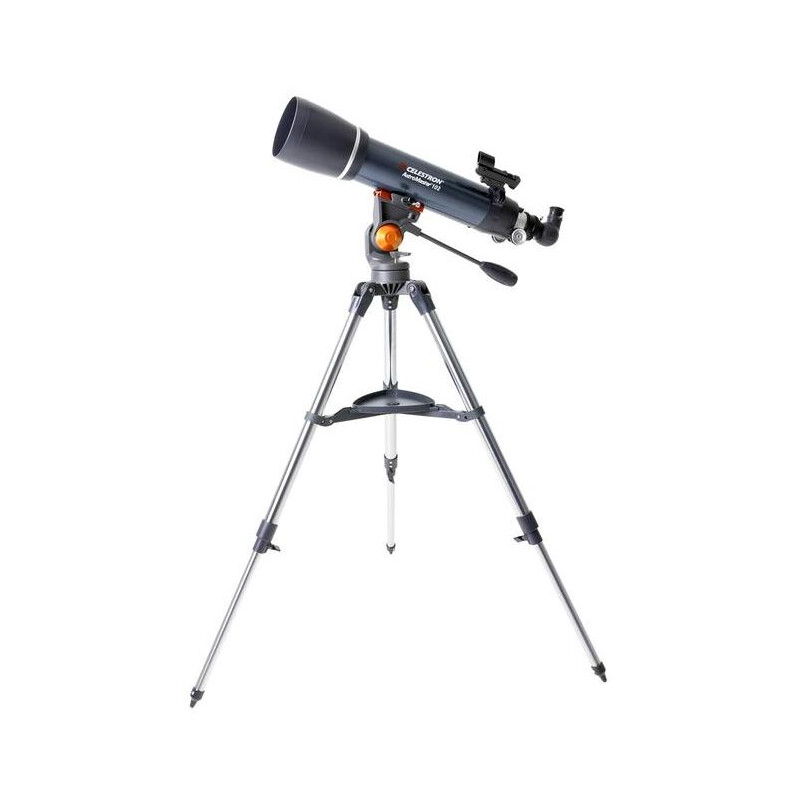

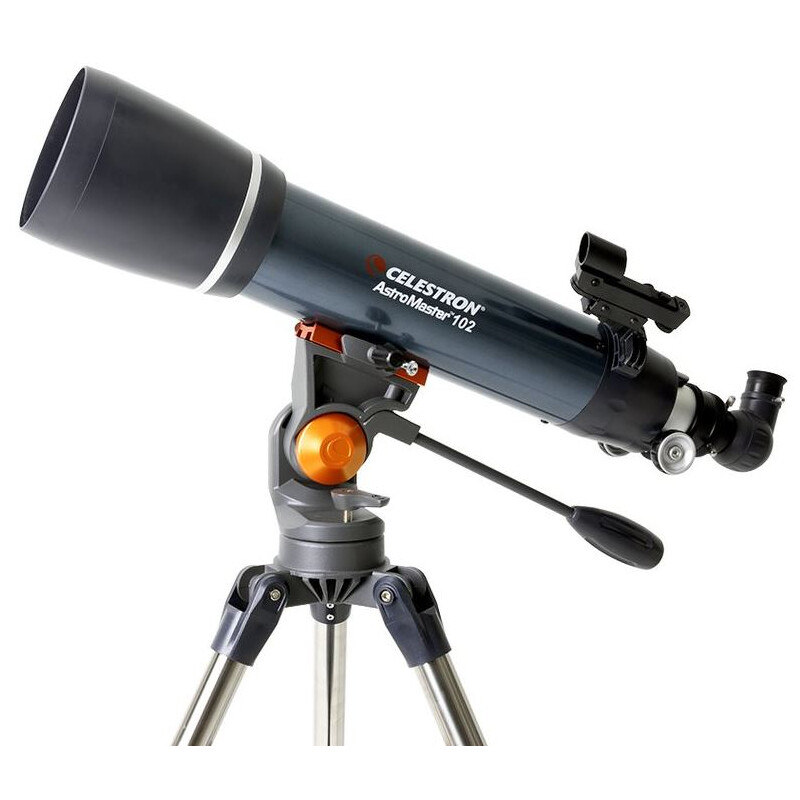

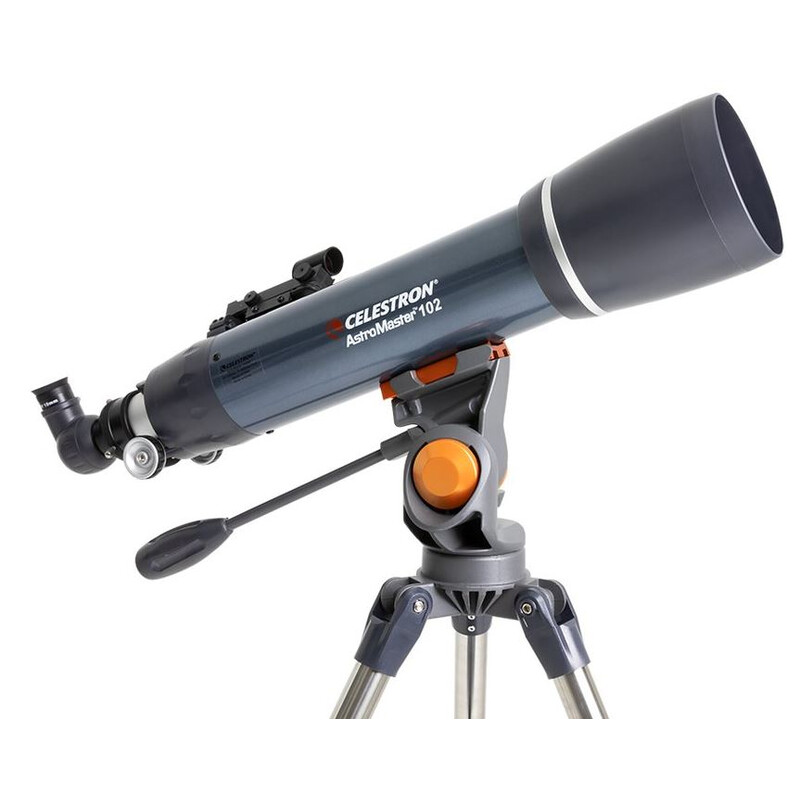

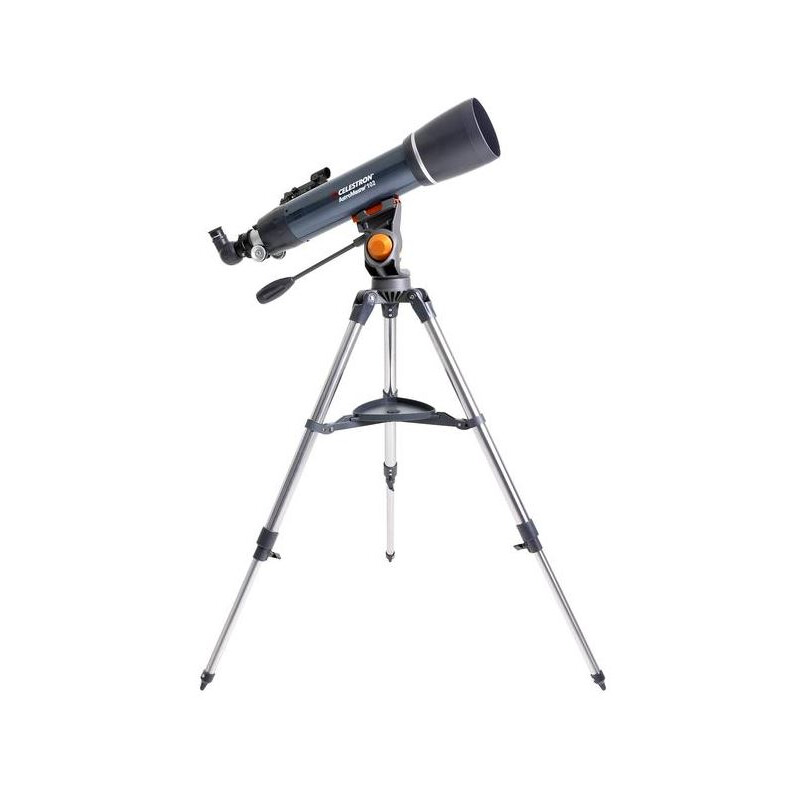

AstroMaster 102AZ Telescope

Item #: 22065

• Manual altazimuth telescope and with pan handle control for smooth and accurate pointing.
• Adjustable, full height steel tripod with deluxe accessory tray.
• Quick and easy no-tool setup.
• Accessories include a 20mm and 10mm eyepiece, a finderscope, and an erect image diagonal - ideal for both terrestrial and astronomical use.
• Coated all-glass optics for clear, crisp images.
• Celestron Starry Night Software included.

Discover our solar system with the Celestron 102AZ! You’ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 102AZ provides bright, clear images of the Moon, planets, star clusters, and more for great nighttime viewing. Plus, this dual-purpose telescope with erect image optics can also be used during the day. You’ll enjoy viewing lakes, mountain ranges and wildlife by day, then stargazing at night.

Optical Tube Info:
Optical Design:	Refractor
Aperture:	102mm (4")
Focal Length:	660mm (26")
Focal Ratio:	f/6.5
Focal Length of Eyepiece 1:	20mm (.78")
Magnification of Eyepiece 1:	33x
Focal Length of Eyepiece 2:	10mm (.4")
Magnification of Eyepiece 2:	66x
Barlow Lens:	Not Included
Finderscope:	Built-in Red Dot Finder
Star Diagonal:	Erect Image, 90° (1.25")
Optical Tube:	Aluminum
Highest Useful Magnification:	241x
Lowest Useful Magnification:	15x
Limiting Stellar Magnitude:	12.5
Resolution (Rayleigh):	1.37 arc seconds
Resolution (Dawes):	1.14 arc seconds
Light Gathering Power (Compared to human eye):	212x
Optical Coatings:	Fully Coated
Optical Tube Length:	380mm (15")
Optical Tube Diameter:	100mm (3.93")
Optical Tube Weight:	5 lbs (2.25 kg)
Dovetail:	CG-5 Dovetail bar

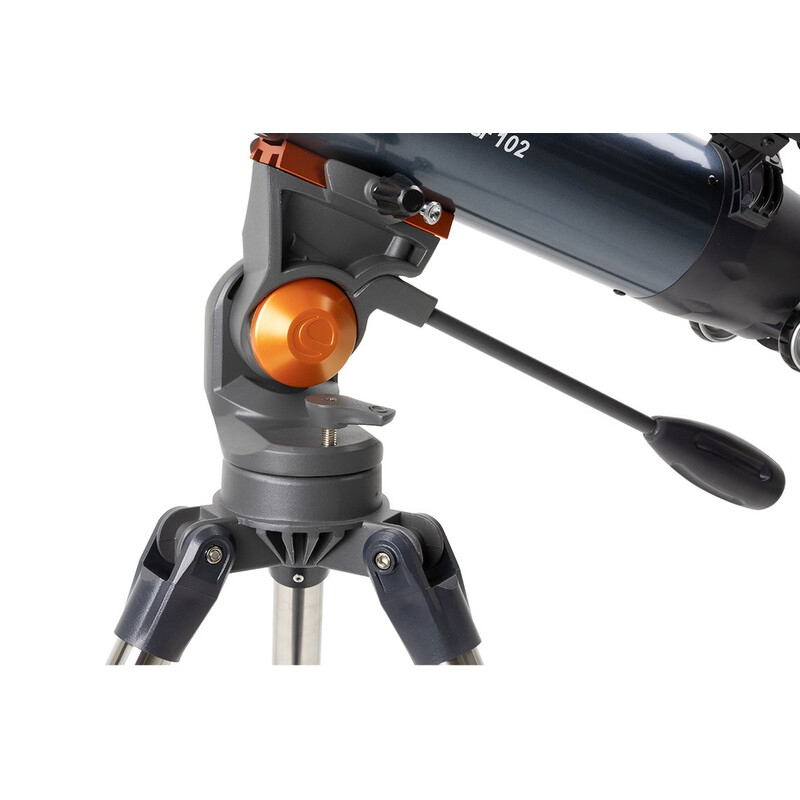

Mount Info:
Mount Type:	Manual Alt Azimuth
Height adjustment range (includes mount and tripod):	812.8mm - 1295.4mm (32" - 51")
Tripod Leg Diameter:	31.75mm (1.25") steel
Accessory Tray:	Yes
Slew Speeds:	Manual
Tripod Weight:	7.9 lbs (3.6 kg) includes weight of mount
Dovetail Compatibility:	CG-5 saddle plate
Software:	Celestron Starry Night Basic Edition Software and SkyPortal App
Total Telescope Kit Weight:	12.9 lbs (5.85 kg)
Included Items:	Optical tube Tripod and mount (preassembled) 20mm and 10mm eyepiece Red-dot finderscope Erect image 90° diagonal Manual
Solar Warning	Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present
